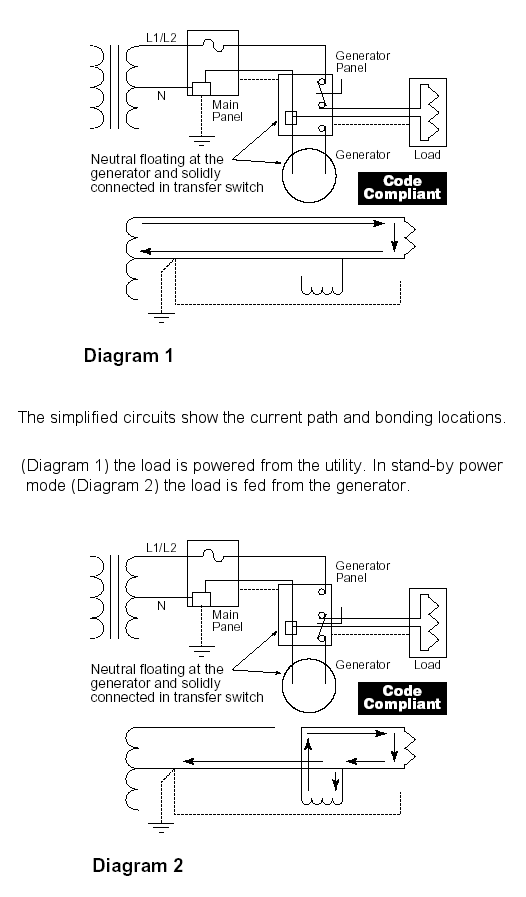

Typical Installation. <!--	Add Flex Cord for extra $15.00 ONLY. SEE THIS AUCTION SPECIAL BELOW	Side View.	Package.	Simplified Schematics.	Package.


FEATURES:

- Manufacturer part number 6-5000
- CSA certified. Conforms to UL Standard 1008.
- Approved by E.T.L. (Electrical Test Laboratory, U.S.A.)
- Easy installation. PRE-WIRED for the Do-It-Yourselfer or Electrical Contractor.

- Installation can be done in just a ONE HOUR!
- Wires are 4ft long and Letter Coded A, B, C, D, E, F for easy wiring.
- Built in wattage meter permits load balancing to avoid impeding your generator performance.
- All loads are protected by 15A circuit breakers both in normal and emergency modes.

- Yields enough hot circuits to keep your home and family safe and comfortable.
- You choose the circuits you want during power outage.
- Convenience outlet: Live when your generator is operating, this outlet is used for tools or lighting near the EmerGen switch during an emergency.
- Maximum Load per Circuit: 15 Amp
- Maximum Combined Loads at 125V: 40 Amp
- Maximum Power Output: 5000W ( 125V x 40A = 5000W )
- Voltage Rate: 125/250V
- Dimensions, H x W x D: 210 X 260 X 90 mm / 8 x 10 x 3.5 inches
- 1 Year Manufacturer Warranty. Assures quality workmanship and exceptional performance.

<!--

This is NOT a rebuilt or refurbished item. It is NEW!.

Manual transfer switches allow home owners to safely switch from the utility power to a back-up generator during power outage. The manual transfer switches are wired directly to the load center inside the home and provide a fast and easy way of connecting the generator to the home.The transfer switches are designed to handle emergency circuits only during a power outage. The switch comes complete with NEMA L14-20 125/250V female 4-prong power cord end to fit the transfer switch male receptacle.

The switch isolates the emergency circuits from the utility line allowing for efficient operation of the generator without back feeding onto the utility or the threat of the utility power back feeding your generator when power is restored. It has two built in wattage meters allowing load balancing and visually provides the generator's capacity usage. The panel is pre-wired to meet the Electrical Code for the do-it-yourselfer or electrical contractor to simplify and speed up actual installation. Compatible with all load centers. It comes with a approx 2 feet long interconnection flex cable (approx 4 feet wire) and a convenience outlet located right on front panel. It accepts a four (4) prong female twist lock connector configuration L14-20. The switch is CSA certified, approved by E.T.L. (Electrical Test Laboratory, U.S.A.), meets UL requirements and NEMA 1 rated. Outline dimensions are 10 x 9 x 4 inches.

This is the only safe and logical way for transferring generator electricity to power critical loads: pump, gas furnace, garage door, water heater, television, refrigerator, microwave, coffee maker etc.

During a power outage, plug the generator into manual transfer switch and turn one circuit at a time from the "LINE" position to the "GEN" position. Turn the appliance on the circuit ON and monitor the wattage used by the appliance. When operating off of the generator, it is recommended that the loads are approximately the same on both meters to maximize the efficiency of the generator.

New in box with detailed installation instructions and wiring diagram.

<!--

THIS IS OPEN BOX STOCK!

The box has been opened for inspection. Product is in perfect working order and comes with original manufacturer's warranty. There may be some slight signs of handling.
